World Class Home Theater Made Simple:
Industry First's 7.1Ch True Discrete Surround Soundbar

Unlike most simulated 2.1 ch virtual surround soundbars, the Shockwafe Pro 7.1 DTS:X is a true, discrete home theater solution that will fill your room with next generation object based 3D surround sound in minutes. Enjoy your favorite movie soundtracks and music in their most authentic form, just as the directors intended. A signature of our Shockwafe DTS:X series of soundbars, lifelike surround effects are moving from all directions to make listeners feel like they have been transported right into the center of the action. Our newly-designed 8” wireless down-firing subwoofer emits adrenaline pumping low frequencies directly into the floor surface to distribute powerful and accurate bass across the entire room, intensifying the vibrations and rumbles heard and felt by all listeners for a truly immersive experience. Unlock unheard-of surround details with our exclusive 2-way rear surround effects speakers, each of which is equipped with a tweeter that reproduces high frequencies with captivating clarity and a full-range driver that delivers surround effects with power and precision.



AVAILABLE AT




- 7.1.4 Channels
- Dolby Atmos
- DTS:X

Spatial, Surround, Elevation (SSE) Processing Technology

Dual 8" Wireless Subwoofers

- 2 Two-Way Rear Speakers
- Front Effects Tweeters

- 600 Watts, 106dB
- Dolby Vision & 4K HDR

IMMERSIVENESS

- 7.1.4 Channels

- Dolby Atmos

- DTS:X

+

SURROUND TECHNOLOGY

Spatial, Surround, Elevation (SSE) Processing

+

BASS

Dual 8" Wireless Subwoofers

+

SURROUND EFFECTS

- 2 Two-Way Rear Speakers
- Front Effects Tweeters

+

PERFORMANCE

Up to 800 Watts 106dB

+


3 advanced processing engines work in harmony to reproduce immersive audio in extraordinary detail.

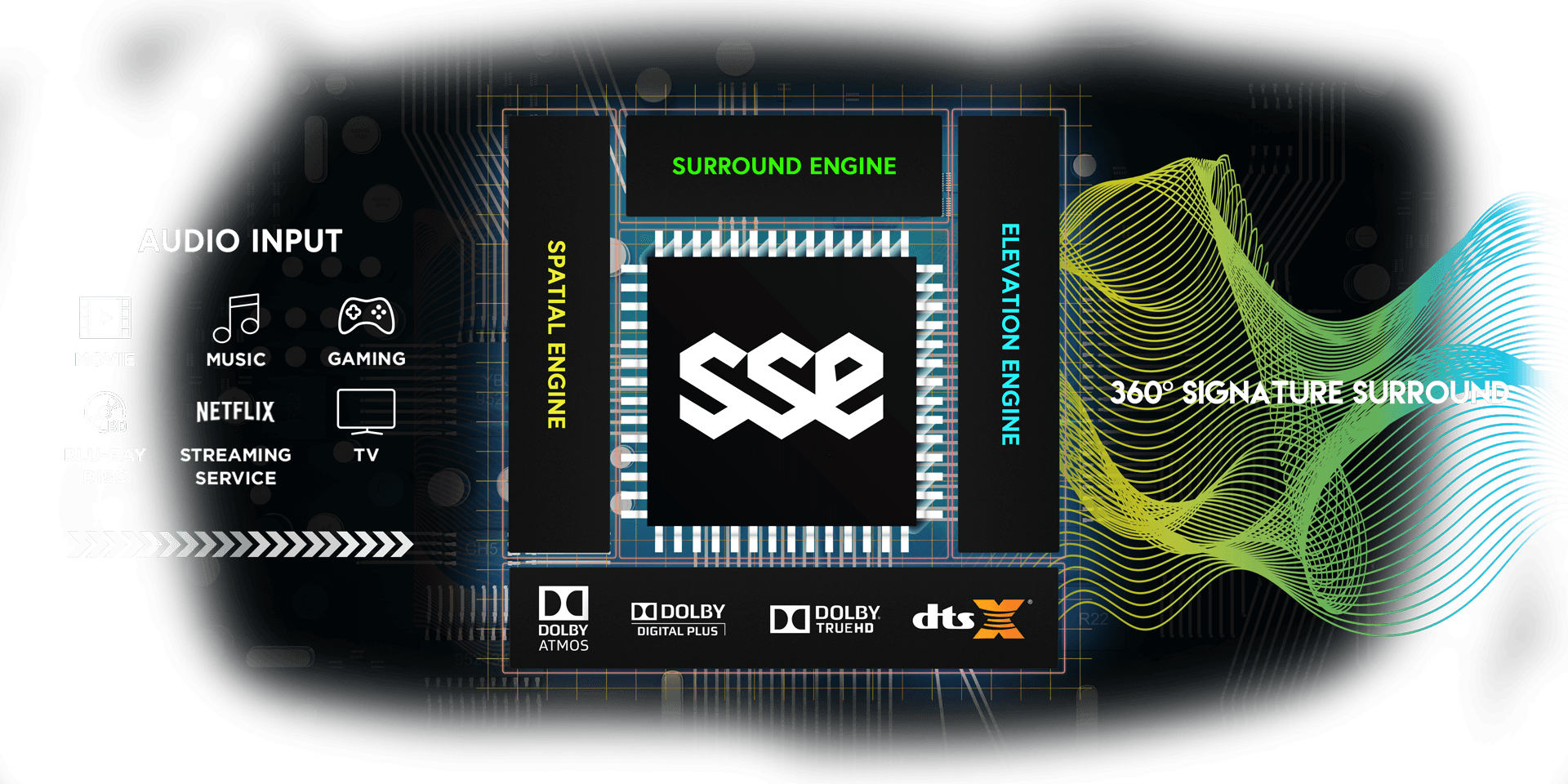

Spatial, Surround, Elevation (SSE) Processing Engines





Spatial

Performs spatial-amplification techniques and engages the 4 high-frequency tweeters located around the user to unlock extra details, enhance directionality and enlarge spaciousness of the surround sound experience.




Left: Elite 7.2 SSE Spatial Engine; Right: Conventional Soundbar




Surround

Executes upmixing, phase and volume improvements to optimize the clarity and balance of the surround sound across all channels, delivering up to 7.2.4 channels of uncompromising surround sound on the Elite 7.2 SSE model, respectively.




Left: Elite 7.2 SSE Surround Engine; Right: Conventional Soundbar




Elevation

Enables the processing of all the latest 3D object-based content, including Dolby Atmos and DTS:X, and interlaces a height effects sound layer into each of the 13 speaker drivers located around the user, resulting in the most immersive perception of directionally vertical effects.




Left: Elite 7.2 SSE Elevation Engine; Right: Conventional Soundbar



The Bassist: Redefining Harmony with power, precision and control.

Our newly-designed 8" wireless down-firing subwoofer emits bass effects as low as 35Hz directly onto the floor surface, distributing powerful and accurate bass in all directions across the entire room, increasing the vibrations and rumbles heard and felt by all listeners for a truly immersive experience.



Up to 7.1.4 channels of Extreme Sound



DOlby Atmos
object-based surround

Dolby Atmos® transports you from the ordinary into the extraordinary with breathtaking, moving audio that fills your room and flows all around you, even overhead.


DTS:X
object-based surround

DTS:X delivers individual sounds anywhere in your room and moves them around in a 3D space, including above you. With older formats, sounds only move front to rear and left to right, but not up and down like DTS:X.

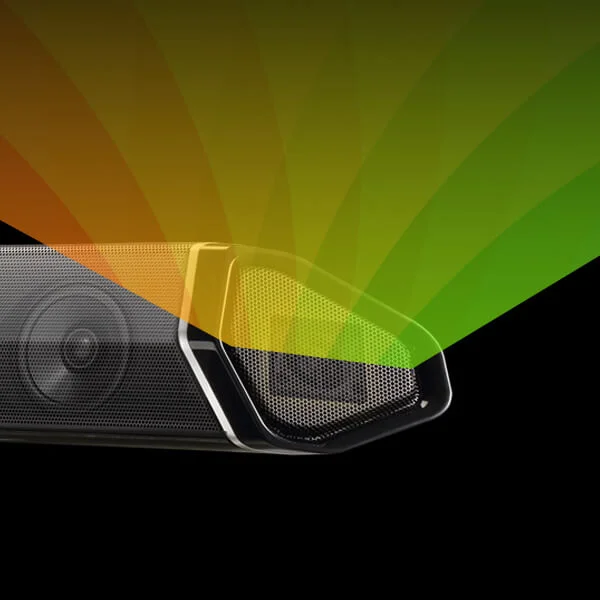

Front Surround Effects Tweeters

Our revolutionary Surround Effects Tweeters reflect sound off walls and ceiling, delivering a 35% wider soundstage filled with dynamic surround details for a more immersive home theater.


2-Way Surround Speakers

Discover never-heard-of surround details with our 2-Way Surround Speakers. The tweeter reproduces high frequencies with captivating clarity, while the full-range driver delivers surround effects with power and precision.


Quad-Core Surround Processor

The embedded top end Cirrus Logic Quad-Core Digital Signal Processing chipset processes the most demanding surround soundtracks with unprecedented speed, detailed precision and lifelike clarity.



2 Placement Options available to match the acoustics of your room

Signature

Full Elevation

Connectivity



Dolby Vision®

Dolby Vision® Active HDR brings extraordinary color, contrast, and brightness to the screen, transforming your viewing experience2.





Advanced Connectivity

Enjoy stunning video quality with incredible contrast, brightness, and vivid colors, just like the way directors intended. Advanced connectivity options include Dolby Vision2 and 4K UHD HDR pass-through. Seamlessly connects your devices via 1 HDMI Audio Return Channel (ARC), 3 HDMI (v2.0, HDCP 2.2), 1 Optical and 1 Coaxial inputs.





Bluetooth with aptX

Stream music wirelessly from your mobile devices via Bluetooth (BT) with aptX. BT audio is often compressed using bit-rate reduction. However, Qualcomm aptX technology enhances BT sound quality by replicating the entire frequency of the audio, reproducing pure sound and ensuring listeners hear every detail created by the artist. With aptX, music lovers can enjoy wired quality sound – wirelessly.




Remote Control



Full Feature backlit display

Sleek, intuitive and ergonomically designed, the full-feature 52-key backlit remote allows seamless control even in the dark. You can easily access source inputs, EQ settings and individual channel volume. Enjoy new advanced functionality like SSE Personalization (3 modes), one-button room size optimization and lip sync adjustments.







ONE BUTTON room optimization

Optimize your surround sound based on preconfigured settings for Small, Medium and Large room sizes.


Spatial Surround Elevation (SSE) Control

Personlize your SSE experience with 3 pre-configured modes that best matches the acoustics of your theater room

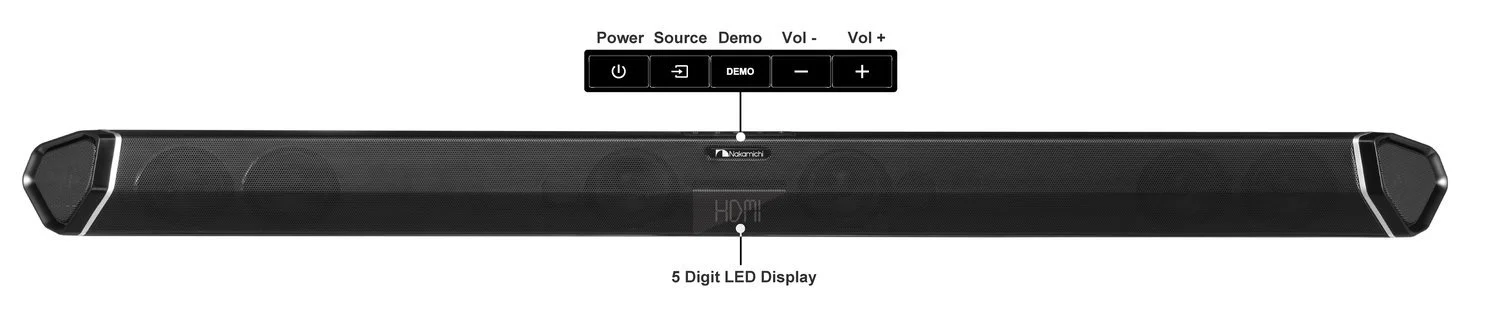

Soundbar Overview


Technical Specifications

SHOCKWAFE PRO 7.1 DTS:X (2018) / SHOCKWAFE PRO 7.1 SSE (2019)

Hardware Specifications
1 x 45” Soundbar

6 x 2.5” Full Range Driver

2 x 1” High Frequency Tweeter

2 x Rear SURROUND SPEAKERS 1

1 x 3” Full Range Driver (Each)

1 x 1” High Frequency Tweeter (Each)

Wireless Subwoofer 1 x 8” Down-Firing Subwoofer
Total Speaker Drivers 13 Drivers
Audio Performance
Audio Channels Up to 7.1.4 2
Loudness 105dB SPL
Total Power 600W
Power Output

330W (Soundbar)

90W (Rear Surrounds)

180W (Subwoofers)

Frequency Response 35Hz - 22kHz
Audio Processor Quad-Core Cirrus Logic Chipset with SSE Enhancement Technology
Connectivity

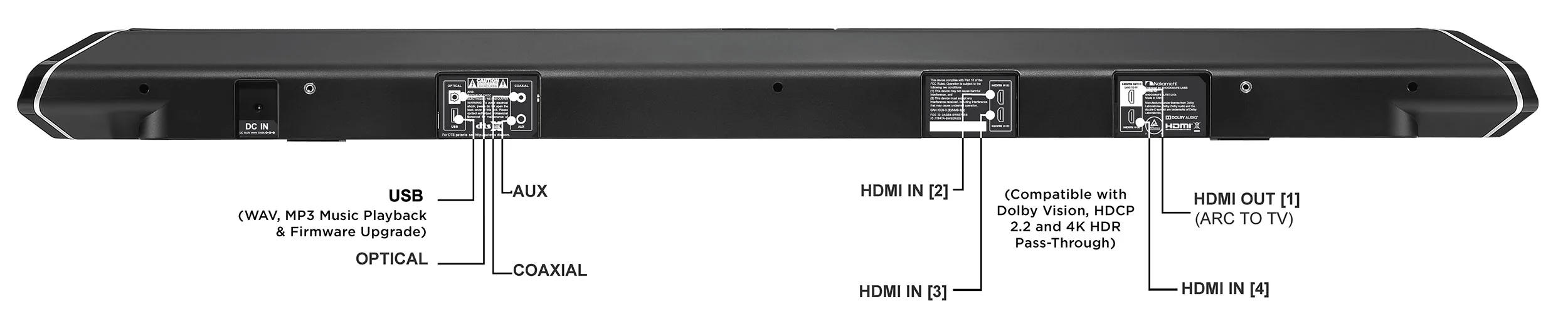

Input and Output Interface

HDMI In, HDMI (ARC) out, Optical In, Coaxial In, 3.5mm Analog In, USB Type-A

Bluetooth

Version 4.1 with aptX

USB

Music & Firmware Upgrade

Wireless Subwoofer TX/RX

5.8GHz

Power Input

100 - 240V, 50/60Hz (Soundbar)

110 - 240V, 50/60Hz (Subwoofer)

HDMI
Number of Inputs and Outputs 3 Inputs / 1 Output (ARC)
HDMI Version HDMI 2.0a / HDCP 2.2
Video Resolution Up to 4K60P
HDR Format HDR Pass-Through,
Dolby Vision Compatible 2
Color Space 12-bit
HDMI CEC Yes
Audio Format
HDMI Input

Dolby Atmos 2 (Dolby Atmos encoded Dolby TrueHD & Dolby Atmos encoded Dolby Digital Plus), Dolby TrueHD 2, Dolby Digital Plus 2, Dolby Digital

DTS:X, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS Digital Surround

LPCM 7.1, LPCM 5.1, PCM 2.0

Optical Input

Dolby Digital, DTS Digital Surround, LPCM 2.0

USB

MP3, WAV

Bluetooth

SBC, aptX

Sound Function
Sound Mode Movie, Music, Game, Sports, News, Clear Voice, Night, Clear Voice, DSP Off
Surround Upmixing Dolby Surround 2, DTS Neural:X
Vertical Processing 2

Spatial Surround Elevation (SSE)

SSE mode 2

SSE OFF, SSE 1, SSE 2, SSE 3

Bass & Treble Level Control

Yes

Center Channel Level Control

Yes

Surround Level Controls

Side Surround Level

Rear Surround Level

Surround L&R Balance

SIZE AND WEIGHT
Soundbar

45.5 x 3.5 x 3.0 Inches / 7.27 Lbs

Surround Speaker

5.0 x 5.4 x 8.0 Inches / 2.8 Lbs (Each)

Subwoofer

9.5 x 12.0 x 20.5 Inches / 19.0 Lbs (Each)

Shipping Box

48.2 x 14.8 x 17.8 Inches / 46.5 Lbs

Included Accessories
Remote Control 52-Key Backlit Remote Control with AAA Batteries
Bundled Cables

1 x Soundbar Power Adapter with AC Cord (10 ft)

1 x Subwoofer AC Cord (5 ft)

2 x RCA Surround Speaker Cable (32.8 ft)

1 x HDMI Cable (5 ft)

1 x Optical Cable (5 ft)

1 x 3,5mm Aux-In Cable (4 ft)

Wall-Mounting Kit

4 x Surround Speaker Mounting Screw

2 x Soundbar Mounting Screw

6 x Soundbar and Surround Speaker Wall-Mount Bracket

12 x Wall Screw and Bracket

1 x Wall-Mount Guide

Compare Models




1 Rear Surround speakers are connected to subwoofer by using bundled surround speaker cables.

2 Features available via free firmware upgrade in end June. Refer to www.nakamichi-usa.com/shockwafe-sse for more details. While supplies last.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

DTS, the Symbol, DTS-HD, and DTS or DTS-HD and the Symbol together are registered trademarks of DTS Inc., and all other DTS logos are trademarks of DTS, Inc. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, DTS:X, and the DTS X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved. Bluetooth is a registered trademark of Bluetooth SIG. Inc. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Nakamichi LLC is under license. Other trademarks and trade names are those of their respective owners.

Shockwafe Pro 7.1 is rated at 105dB. The Sound Pressure Level is measured using pink noise at 1 meter, C-weighted. The Total harmonic Distortion calculated as an electrical measurement of amplifier distortion.

Wireless Subwoofers are rated -3dB @ 35Hz. Nakamichi uses the industry standard LINEAR X SYSTEMS, LMS electroacoustic analyzer. The bass frequency is measured using swept sine wave at 2 meters, parallel to the subwoofer driver’s technique.
